| Tempat asal: | Shenzhen |
| Nama merek: | Chuangyin |
| Sertifikasi: | Test Report |
| Nomor model: | CYR |
| Kuantitas min Order: | 1set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kemasan karton untuk satu set, satu set termasuk tiga potong dengan Komponen |
| Waktu pengiriman: | Dalam waktu 7 hari |
| Syarat-syarat pembayaran: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 36.000,00 pcs per tahun |
| Fitur: | Mengadopsi Bahan PC Berkualitas Tinggi | Tegangan terkait: | AC 660V |
|---|---|---|---|
| Suhu sekitar: | -30 ℃ - + 55 ℃ | Ketinggian: | ≤ 3000 m |
| lubang bundar: | Lewati Busbar | Konstruksi: | Penuh-Tertutup |
| Cahaya Tinggi: | busbar jenis trafo arus,bushing trafo arus |
||

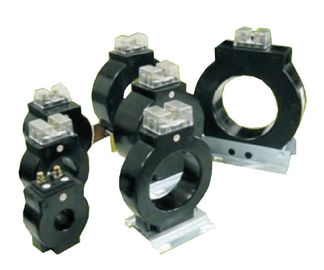

Tegangan Rendah Current Transformer Indoor Single-Phase PC Material
1. Perkenalan
Current Transformer mengadopsi material PC berkualitas tinggi, konstruksi full-enclosed, round hole dapat melewati busbar, digunakan untuk mengontrol, melindungi, mengukur fungsi. P1, P2 terminal primer, S1, S2 terminal sekunder P1 & S1 sama dengan P2, S2 (subtraktif polaritas).
2. Parameter Teknis
1) Nilai Arus Primer: 5-3000A; Rated Secondary Current: 5A, 1A
2). Tegangan terukur: AC 660V
3). Nilai Frekuensi: 50-60Hz
4). Suhu lingkungan: -30 ℃ - + 55 ℃.
5). Ketinggian: ≤3000m
6). Tegangan menahan frekuensi daya (Penutup dan Gulungan Sekunder): 3000V / 1 mnt, 50 Hz
3. Parameter Teknis Utama
| Mengukur Transformer Sekarang | ||||||||||||||||
| Model nomor. | Perbandingan | Kelas Akurasi | Beban | Dimensi | SEBUAH | B | C | D | ||||||||
| CYRM1A0030 / 5C03C | 30/5 (Np = 3) | 1 | 3 | RM1A | 28 | 83 | 38 | 45 | ||||||||
| CYRM1A0060 / 5C03B | 60/5 (Np = 2) | 1 | 3 | RM1A | 28 | 83 | 38 | 45 | ||||||||
| CYRM1A0100 / 5C03 | 100/5 | 1 | 3 | RM1A | 28 | 83 | 38 | 45 | ||||||||
| CYRM1A0150 / 5C03 | 150/5 | 1 | 3 | RM1A | 28 | 83 | 38 | 45 | ||||||||
| CYRM2A0200 / 5C05 | 200/5 | 1 | 5 | RM2A | 42 | 83 | 38 | 45 | ||||||||
| CYRM2A0250 / 5C05 | 250/5 | 1 | 5 | RM2A | 42 | 83 | 38 | 45 | ||||||||
| CYRM2A0300 / 5C05 | 300/5 | 1 | 5 | RM2A | 42 | 83 | 38 | 45 | ||||||||
| CYRM2A0400 / 5C05 | 400/5 | 1 | 5 | RM2A | 42 | 83 | 38 | 45 | ||||||||
| CYRM3A0500 / 5C05 | 500/5 | 1 | 5 | RM3A | 57 | 94 | 28 | 45 | ||||||||
| CYRM4A0600 / 5C05 | 600/5 | 1 | 5 | RM4A | 82 | 120 | 28 | 45 | ||||||||
| CYRM4A0800 / 5C10 | 800/5 | 1 | 10 | RM4A | 82 | 120 | 28 | 45 | ||||||||
| CYRM3A1000 / 5C10 | 1000/5 | 1 | 10 | RM3A | 57 | 94 | 28 | 45 | ||||||||
| CYRM3A1200 / 5C10 | 1200/5 | 1 | 10 | RM3A | 57 | 94 | 28 | 45 | ||||||||
| CYRM4A1600 / 5C15 | 1600/5 | 1 | 15 | RM4A | 82 | 120 | 28 | 45 | ||||||||
| CYRM5A2000 / 5C15 | 2000/5 | 1 | 15 | RM5A | 114 | 153 | 28 | 45 | ||||||||
| CYRM5A2500 / 5C15 | 2500/5 | 1 | 15 | RM5A | 114 | 153 | 28 | 45 | ||||||||
| CYRM5A3000 / 5C15 | 3000/5 | 1 | 15 | RM5A | 114 | 153 | 28 | 45 | ||||||||
| CYRM6A4000 / 5C15 | 4000/5 | 1 | 15 | RM6A | 138 | 175 | 38 | 45 | ||||||||
| Model nomor. | Perbandingan | Kelas Akurasi | Beban | Dimensi | SEBUAH | B | C | D | ||||||||
| CYRP1B0100 / 5J03 | 100/5 | 5P20 | 3 | RP1B | 34 | 150 | 63 | 45 | ||||||||
| CYRP1B0150 / 5J05 | 150/5 | 5P20 | 5 | RP1B | 34 | 150 | 63 | 45 | ||||||||
| CYRP2B0200 / 5J05 | 200/5 | 5P20 | 5 | RP2B | 42 | 150 | 63 | 45 | ||||||||
| CYRP2B0250 / 5J05 | 250/5 | 5P20 | 5 | RP2B | 42 | 150 | 63 | 45 | ||||||||
| CYRP2B0300 / 5J05 | 300/5 | 5P20 | 5 | RP2B | 42 | 150 | 63 | 45 | ||||||||
| CYRP2B0400 / 5J10 | 400/5 | 5P20 | 10 | RP2B | 42 | 150 | 63 | 45 | ||||||||
| CYRP3B0500 / 5J10 | 500/5 | 5P20 | 10 | RP3B | 57 | 156 | 58 | 45 | ||||||||
| CYRP4B0600 / 5J07 | 600/5 | 5P20 | 7,5 | RP4B | 82 | 173 | 44 | 45 | ||||||||
| CYRP4B0800 / 5J07 | 800/5 | 5P20 | 7,5 | RP4B | 82 | 173 | 44 | 45 | ||||||||
| CYRP3B1000 / 5J10 | 1000/5 | 5P20 | 10 | RP3B | 57 | 156 | 58 | 45 | ||||||||
| CYRP3B1200 / 5J15 | 1200/5 | 5P20 | 15 | RP3B | 57 | 156 | 58 | 45 | ||||||||
| CYRP4B1600 / 5J15 | 1600/5 | 5P20 | 15 | RP4B | 82 | 173 | 44 | 45 | ||||||||
| CYRP5B2000 / 5J15 | 2000/5 | 5P20 | 15 | RP5B | 114 | 196 | 44 | 45 | ||||||||
| CYRP5B2250 / 5J15 | 2250/5 | 5P20 | 15 | RP5B | 114 | 196 | 44 | 45 | ||||||||
| CYRP5B2500 / 5J15 | 2500/5 | 5P20 | 15 | RP5B | 114 | 196 | 44 | 45 | ||||||||
| CYRP5B3000 / 5J15 | 3000/5 | 5P20 | 15 | RP5B | 114 | 196 | 44 | 45 | ||||||||
4. Dimensi:
